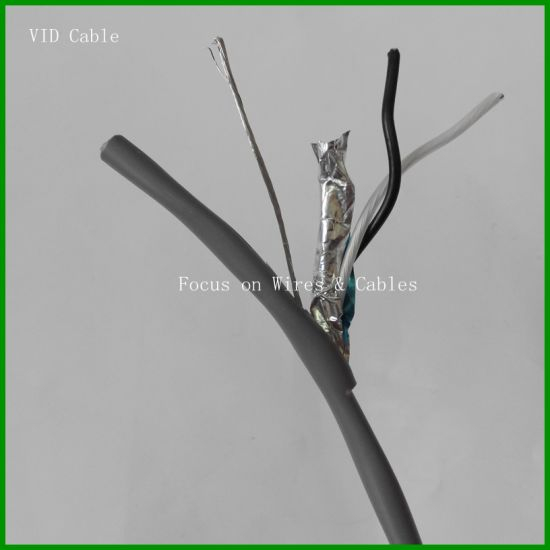

Pair Twisted Cable with Shielded layer for Doorbel, household, hotel and so on.
Multicore ( 2,4, 8 Insulation Core) Stranded Copper Conductor / PVC or HDPE Insulated / Copper Wire Braided Shield / Audio Control Cable
Type: 1Pair, 2Pair
Conductor: Annealed copper or Tinned copper
Conductor Type: Stranded, or Flexible
Insulation:PVC or HDPE
Shielding: Tinned copper wire braided and Aluminum foil layer
Sheathing:PVC
Standard:
GB/T 9330 IEC60228.
Customized Standard.
More Standard and specification as per your customized
Core Identification:
different colored and Number Indentification
Packing:
1.305meter per roll, then carton as the outer packing
2. 1000meter per drum at least
Control cable Description and Technical Type
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5 2.5 | 4-48 | |||
| KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | |
| 1.5 2.5 | 4-48 | Installation indoors where flexibility shielding and movability are required |
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier
