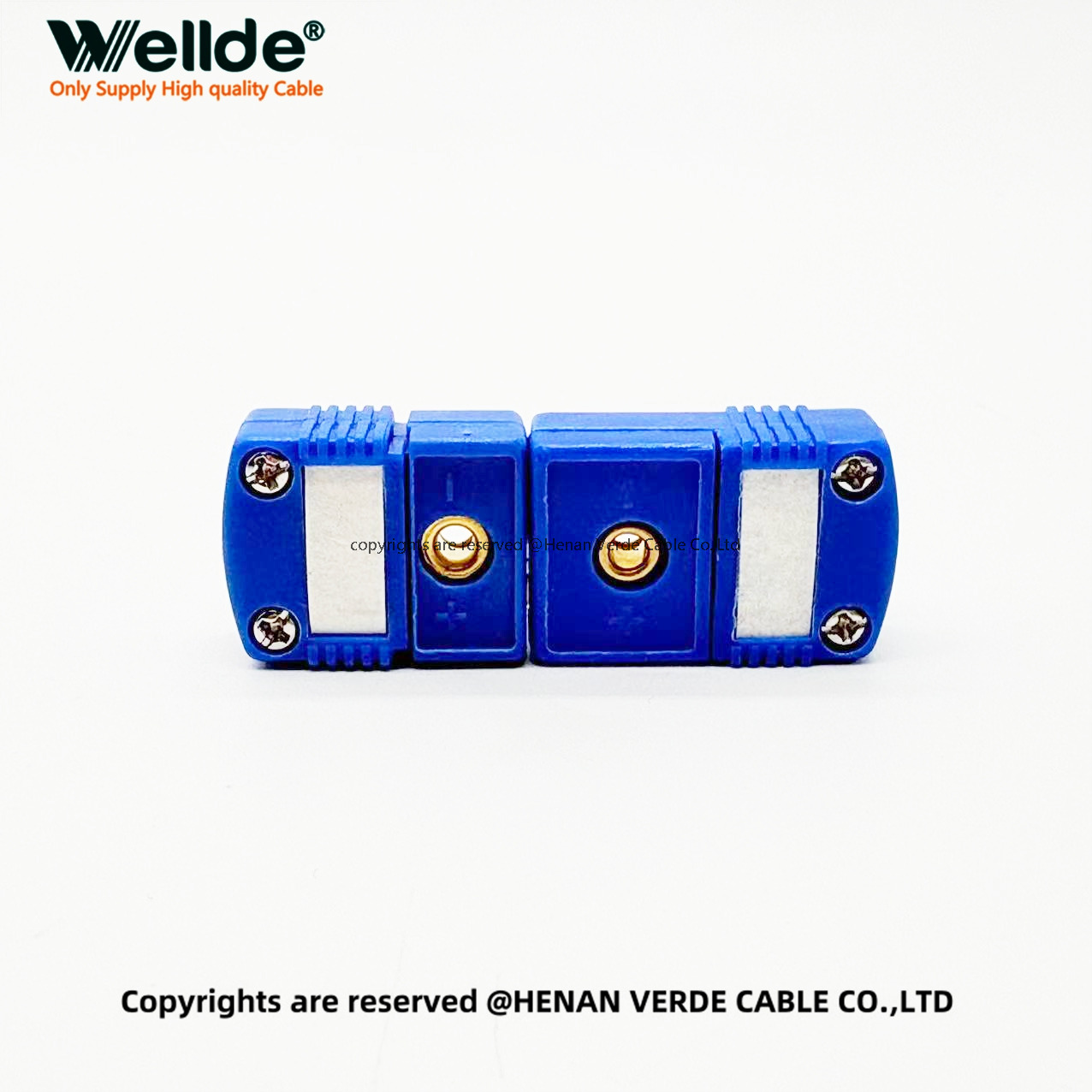

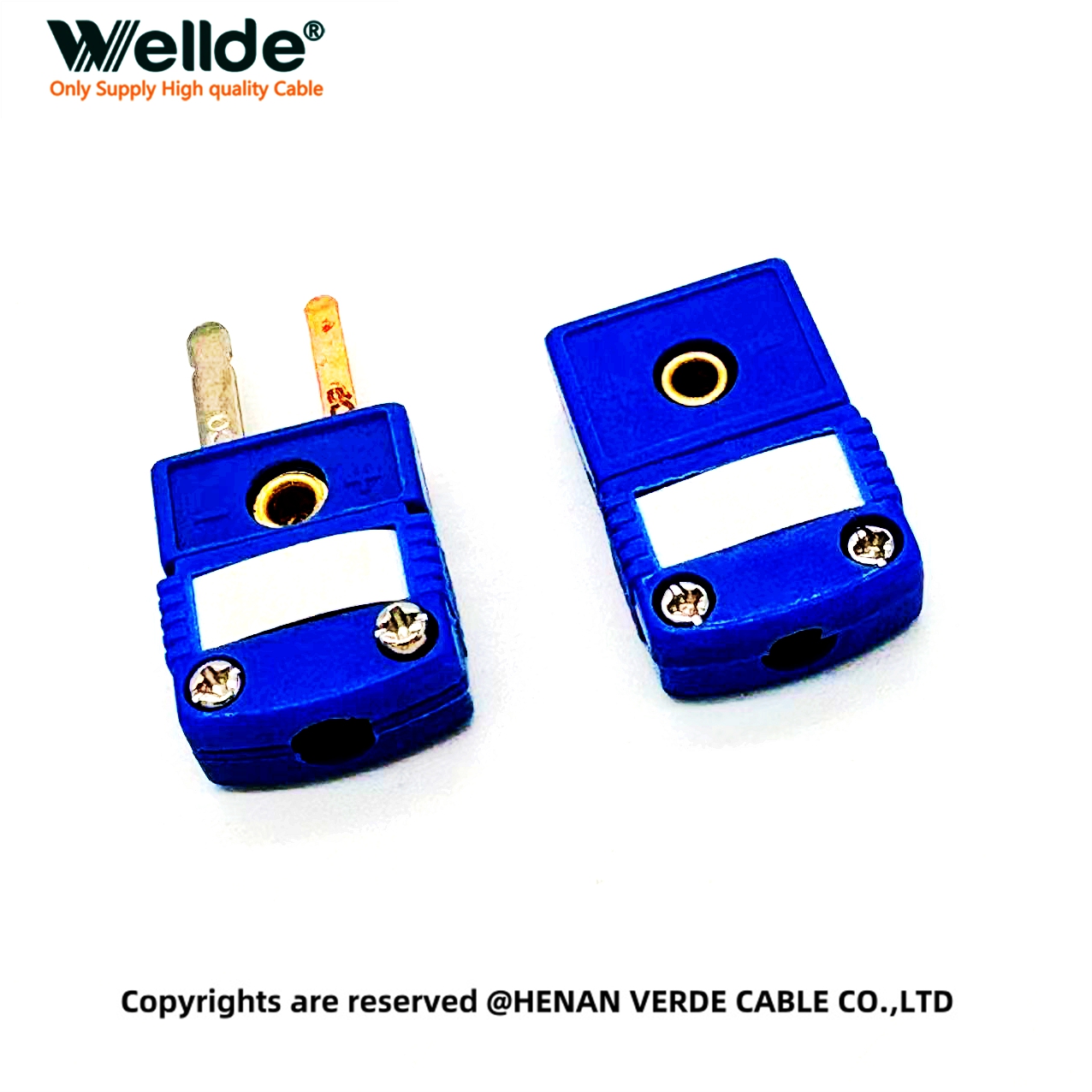

This Type T thermocouple connector is made from high-quality thermosetting plastic, providing excellent insulation, durability, and heat resistance up to 350°C (660°F).
The blue housing clearly identifies the Type T (Copper-Constantan) thermocouple standard according to ANSI/IEC color codes.

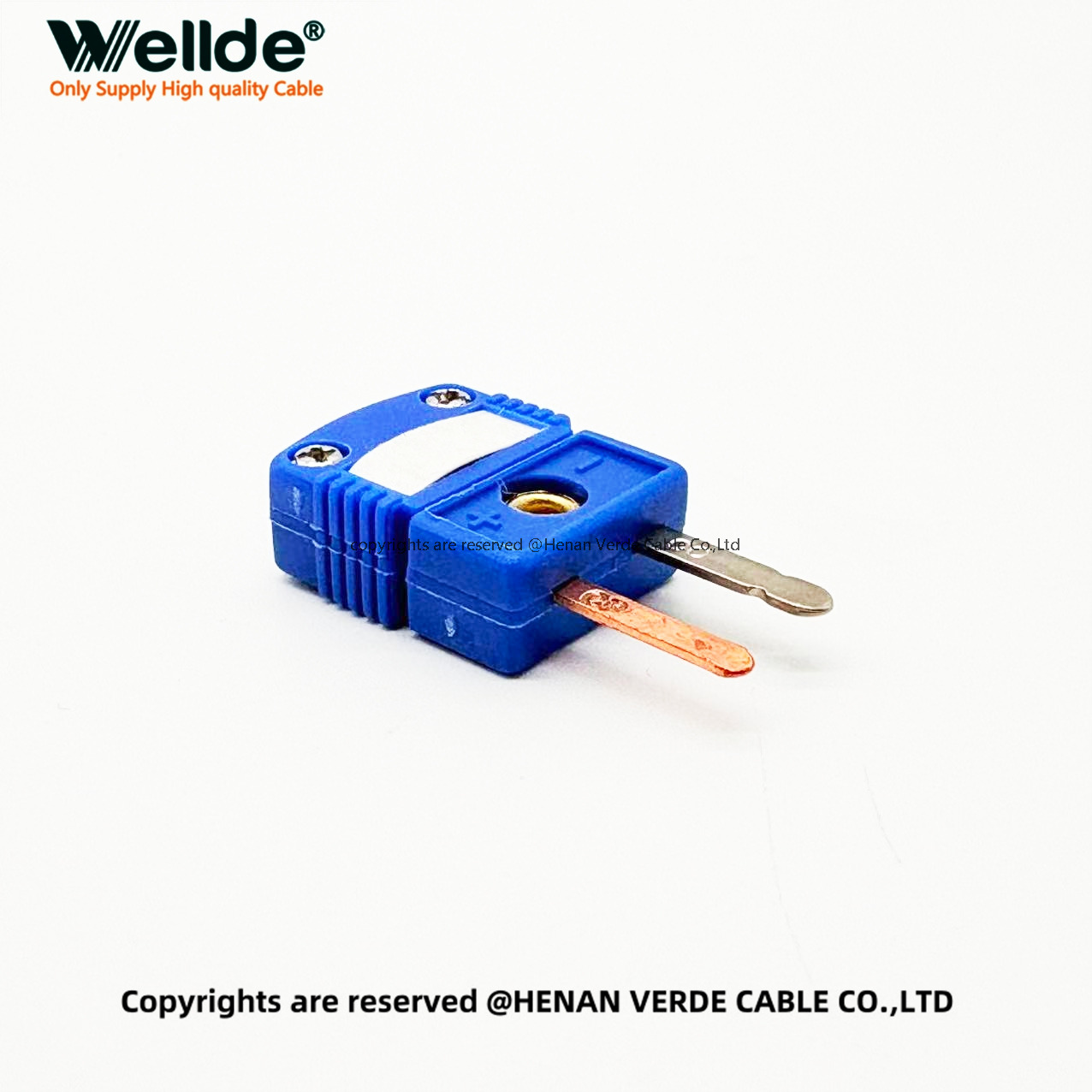

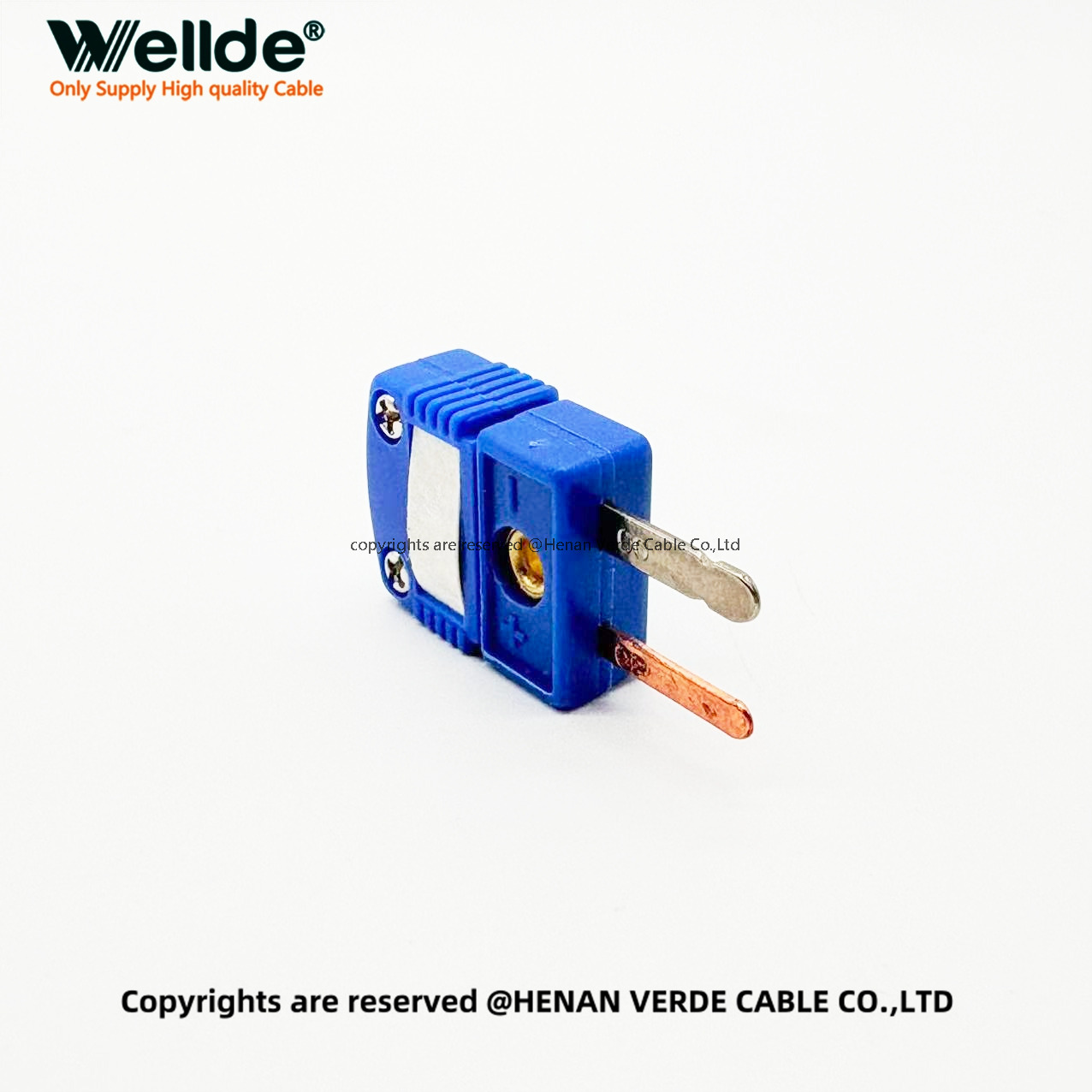

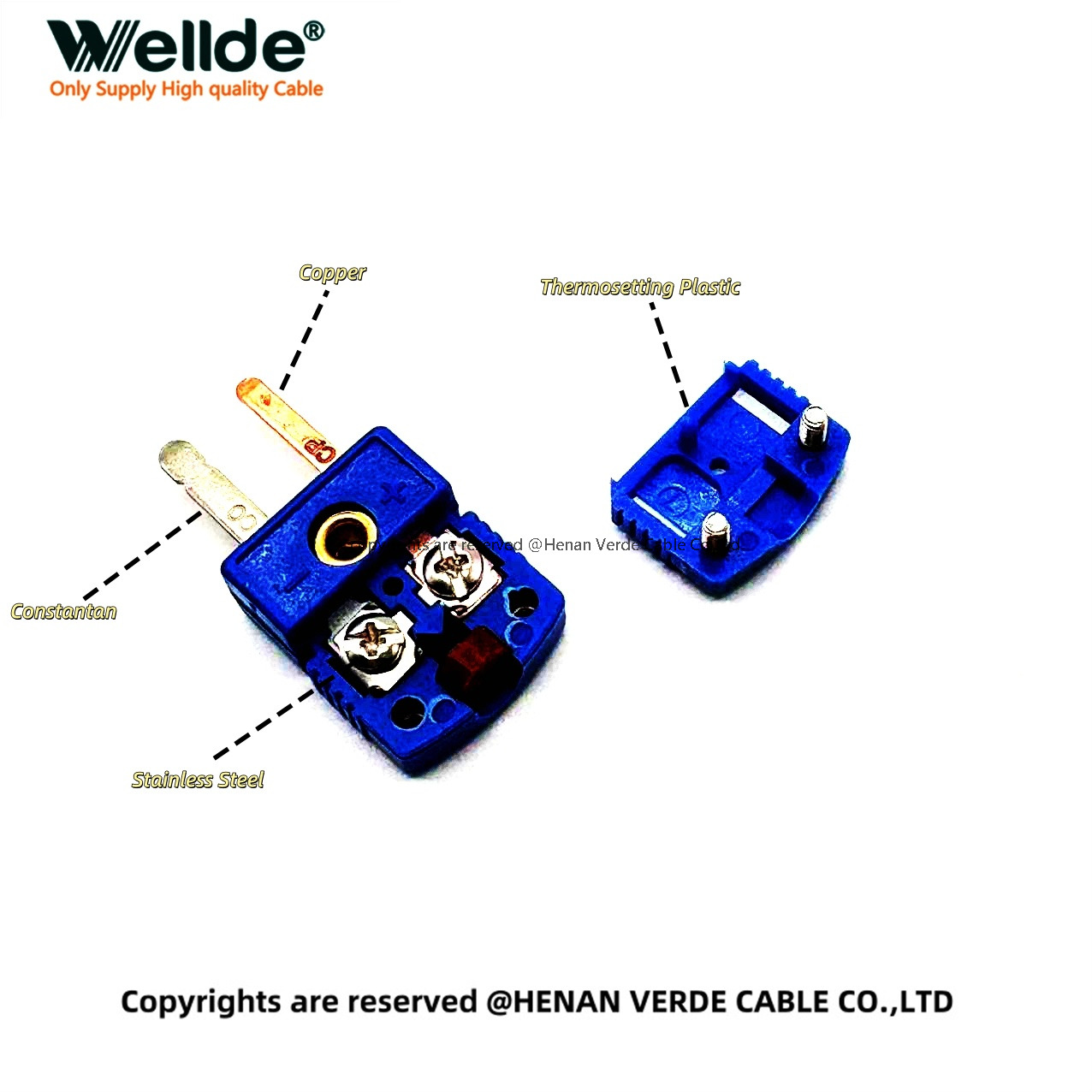

Equipped with copper and constantan alloy pins, this connector ensures accurate signal transmission without introducing additional thermal EMF errors. The polarized pin design prevents incorrect mating, while the stainless-steel screws allow for secure and easy wire installation.

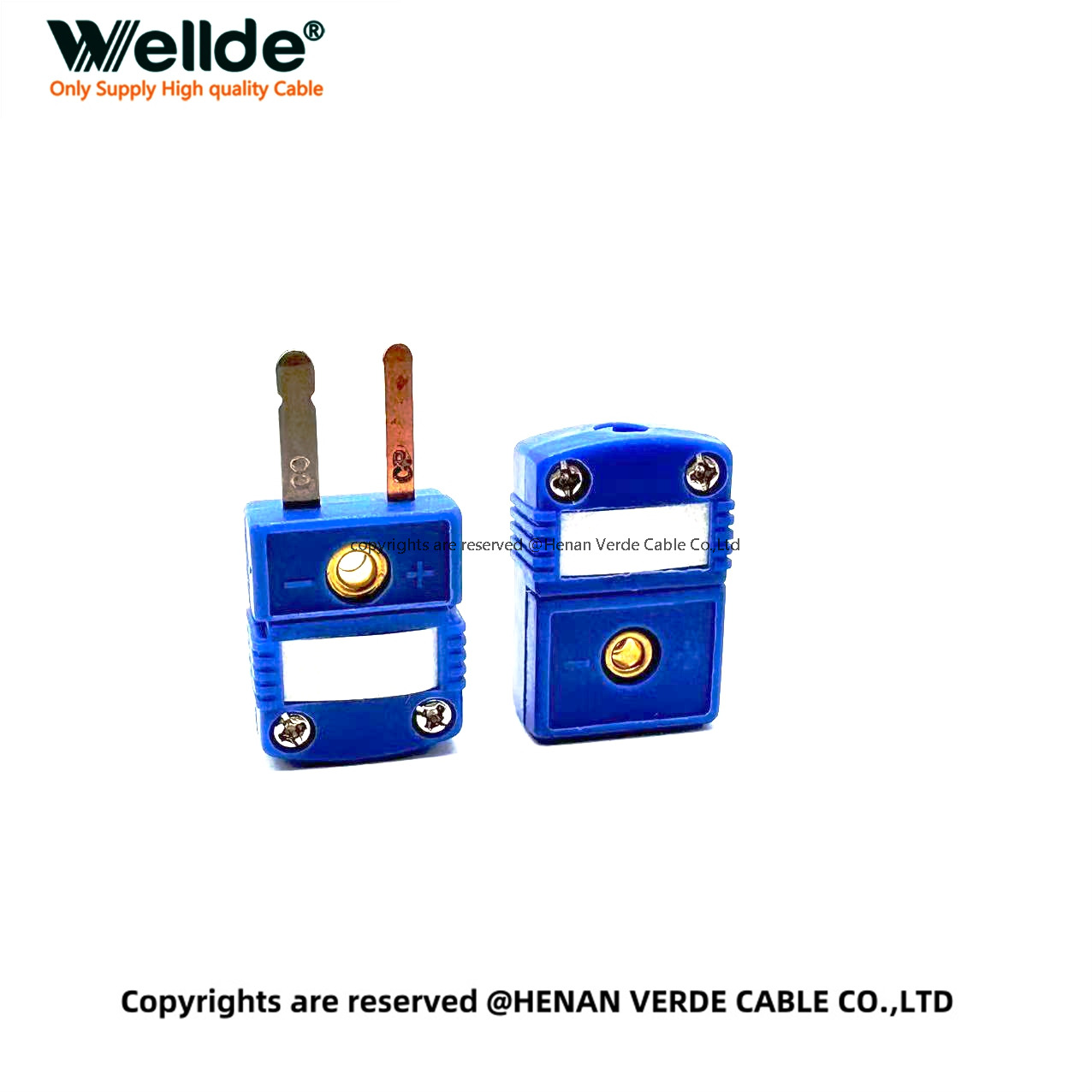

Ideal for use in laboratories, industrial furnaces, temperature sensors, and calibration systems, this Type T thermocouple connector provides reliable performance in both high and low temperature environments.
| Type | Compensational wire & cable core | Insulation color of Compensational wire | Thermocouple graduation | ||
| Plus | Minus | Plus | Minus | ||
| SC or RC | 铜 Cu | 铜镍 0.6 Cu-Ni | 红 red | 绿 green | S (铂铑10-铂) 或 R (铂铑13-铂) S（PtRh10-PT) or R（PtRh13-PT) |
| KCA | 铁 Fe | 铜镍 22 Cu-Ni | 红 red | 蓝 blue | K (镍铬-镍硅) K（NiCr-NiSi) |
| KCB | 铜 Cu | 铜镍 40 Cu-Ni | 红 red | 蓝 blue | |
| KX | 镍铬 10 Ni-Cr10 | 镍硅 3 Ni-Si | 红 red | 黑 black | |
| EX | 镍铬 10 Ni-Cr10 | 铜镍 45 Cu-Ni | 红 red | 棕 brown | E (镍铬-铜镍) E（NiCr-NiSi) |
| JX | 铁 Fe | 铜镍 45 Cu-Ni | 红 red | 紫 violet | J (铁-铜镍) J（Fe-CuNi) |
| TX | 铜 Cu | 铜镍 45 Cu-Ni | 红 red | 白 white | T (铜-铜镍) T（Cu-CuNi) |
| NC | 铁 Fe | 铜镍 18 Cu-Ni | 红 red | 灰 grey | N (镍铬硅-镍硅) N（NiCrSi-NiSi) |
| NX | 镍铬 14硅 Ni-Cr14Si | 镍硅 4 Ni-Si | 红 red | 灰 grey | |
