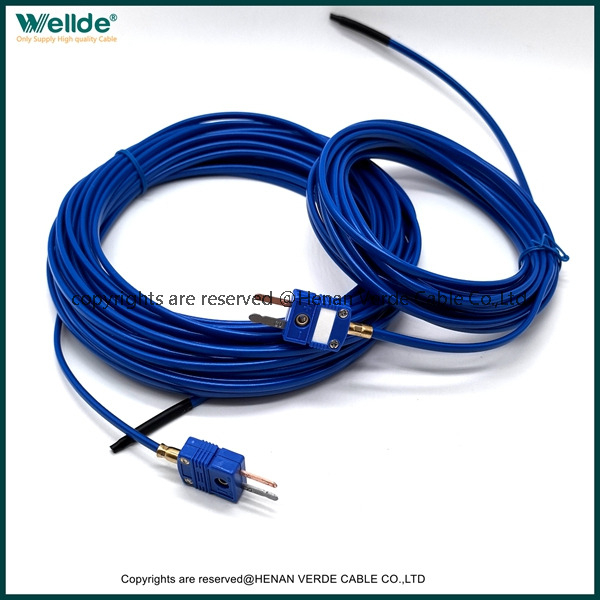

T Type Thermocouple wire
Wellde
Support
AWG/Color/Length
Technical Specification Table for Thermocouple Wires
Parameter Item | Technical Specification |
|---|---|
Type | T Type Copper‑Constantan |
Conductor | Positive: Cu, Negative: Constantan |
Operating Temperature Range | -200℃ ~ +200℃ |
Plug Specification | Standard Mini T‑Type Thermocouple Connector |
Insulation | Blue PVC |
Cable Construction | 2‑core twisted‑pair structure to reduce signal interference |
Custom Options | Cable length, end termination, add temperature‑sensing probe |
Product advantages
1. Outstanding low-temperature measurement performance, suitable for sub zero low temperature conditions, stable error control
2. Prefabricated assembly plugs for finished products, reducing customer welding and crimping processes and saving project time
3. The plug is clearly marked with positive and negative poles, effectively avoiding incorrect temperature measurement caused by reverse connection
4. Stranded conductors with multiple strands, the cable is soft and not easily broken after repeated bending
5. The length can be freely selected; The end can be used as a temperature probe for wire stripping, tinning, and soldering
FAQ
Q1: Can third-party inspection be accepted?
A1: Support, customers can arrange third-party organizations to inspect the goods at the factory.
Q2: What trade terms can be used for exports?
A2: Both FOB and CIF are acceptable, according to customer requirements.
Q3: Can cables be sold without plugs and only with bare thermocouple wires?
A3: Yes, bare T-type thermocouple cables can also be ordered.
Q4: What are the payment methods?
A4: T/T wire transfer is the main method, other payment options can be negotiated.
