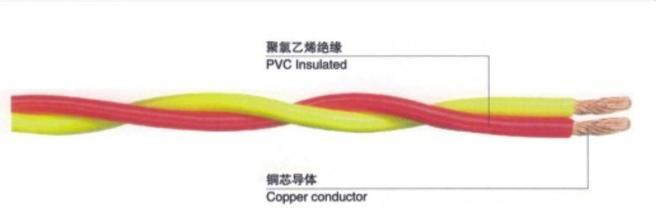

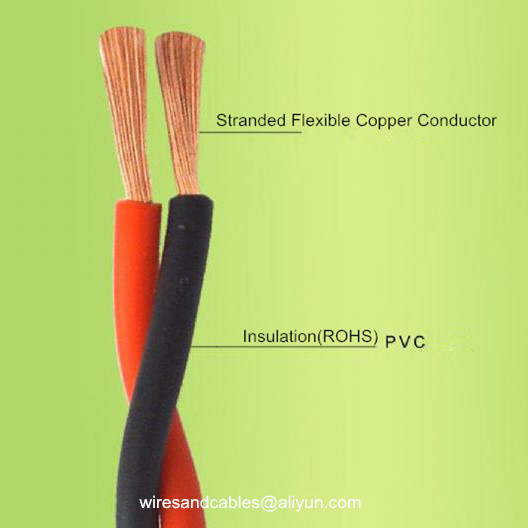

Stranded Copper Conductor PVC Insulated FlexibleTwisted Electrical Cable
Different types and Speicifcations can be Customzied as per your requirement.
1. Basis information:
· U0/U: 450/750V
· Standard applied: IEC 60227,BS 6004 VDE 0281
· Max. working temp.:70°C
· Conductor: Class 1/2 plain annealed copper wires, solid or stranded
· Insulation: PVC
· Cross section area: 0.75~630sqmm
· Core Color: All colors
· Package: 100 meters per roll or as per requirement
· OEM can be available
· Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available
2.Application
It applies to the connecting line of home appliances, instrumentation, power lighting with AC rated voltage 300/300v
3.Technical Data
| Nominal cross-section ( mm2) | Stranding Nos/dia (mm) | Maximum diameter (mm) | Max DC Resistance (Ω/Km. 20°) |
| 2×0.5 | 28/0.15 | 6.0 | 40.1 |
| 2×0.75 | 42/0.15 | 6.2 | 26.7 |
| 2×1 | 32/0.20 | 6.6 | 19.5 |
| 2×1.5 | 32/0.2 | 7.0 | 13.3 |
| 2×1.5 | 48/0.20 | 7.0 | 13.3 |
| 2×2.5 | 49/0.25 | 8.2 | 7.98 |
| 2×4 | 56/0.30 | 10.2 | 4.95 |
If you want to know more information about our products,pls contact me .
Same Sincerity and Care With Every Customer No matter the order is Small or Big!
sending email or telephon us:
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Cables and Wires
Be Your Most Reliable Supplier
