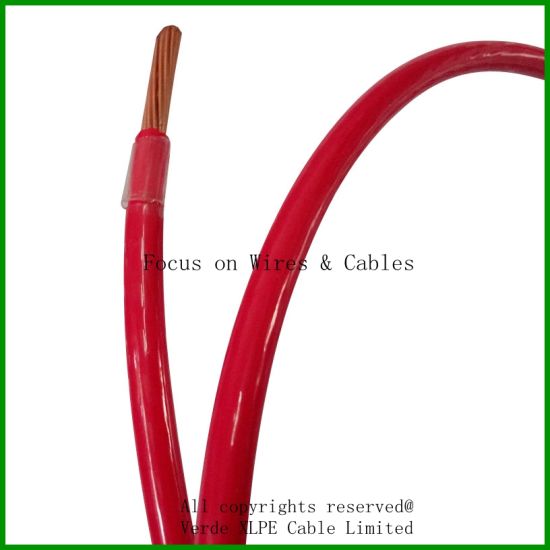

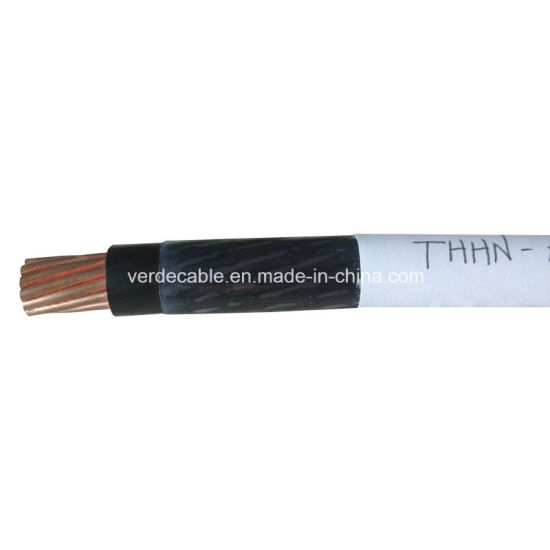

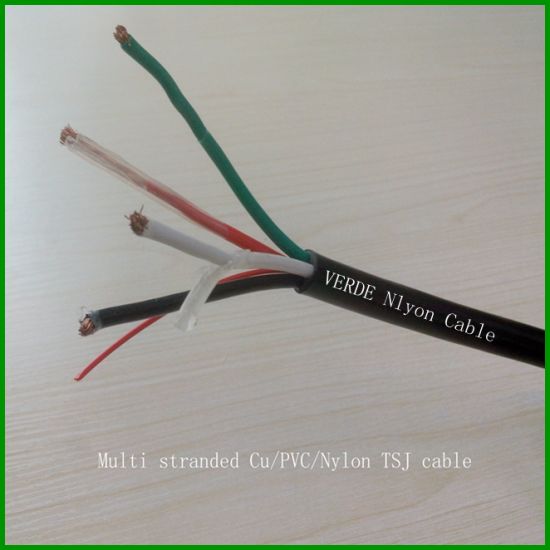

THHN / THWN /THWN-2 /T90/MTW CABLE THHN Cable
Reference standard: UL 83 & UL 1581,UL1063,CSA C22.2No.75-03
1. Rated Voltage:
600/1000V
2. Rated Temperature (ºC):
90ºCdry for THHN,75ºC day or 75ºC for THWN,90ºC dry or 90ºC wet for THWN-2.
3. Structure:
Conductor: Solid or Stranded Copper
Insulation: PVC
Sheathing: Nylon
4. Color:
We can produce different colors as per the requirements of the clients.
| Part No. | Conductor | Insulation | Jacket | Max Dia- meter (mm) | Ref.W (kg/km) | |||||
| Type | Size (AWG) | Construction (No./mm) | Dia- Meter (mm) | Nominal Thickness (mm) | Nominal Diameter (mm) | Minimum Thickness At any point (mm) | Nominal Diameter (mm) | |||
| THHN-14B | Stranded Conductor | 14 | 7/0.62 | 1.86 | 0.38 | 2.66 | 0.10 | 2.90 | 3.3 | 25 |
| THHN-14B1 | 14 | 19/0.38 | 1.90 | 0.38 | 2.70 | 0.10 | 2.94 | 3.4 | 25 | |
| THHN-12B | 12 | 7/0.78 | 2.34 | 0.38 | 3.14 | 0.10 | 3.38 | 3.8 | 38 | |
| THHN-12B1 | 12 | 19/0.47 | 2.35 | 0.38 | 3.15 | 0.10 | 3.39 | 3.8 | 38 | |
| THHN-10B | 10 | 7/0.98 | 2.94 | 0.51 | 4.00 | 0.10 | 4.24 | 4.8 | 59 | |
| THHN-10B1 | 10 | 19/0.60 | 3.00 | 0.51 | 4.06 | 0.10 | 4.30 | 4.8 | 59 | |
| THHN-8B | 8 | 7/1.23 | 3.69 | 0.76 | 5.25 | 0.13 | 5.55 | 6.2 | 97 | |
| THHN-8B1 | 8 | 19/0.75 | 3.75 | 0.76 | 5.31 | 0.13 | 5.61 | 6.3 | 96 | |
| THHN-6B | 6 | 7/1.56 | 4.68 | 0.76 | 6.24 | 0.13 | 6.54 | 7.3 | 147 | |
| THHN-6B1 | 6 | 19/0.95 | 4.77 | 0.76 | 6.33 | 0.13 | 6.63 | 7.4 | 146 | |
| THHN-4B | 4 | 7/1.96 | 5.88 | 0.76 | 7.44 | 0.13 | 7.74 | 8.7 | 135 | |
| THHN-4B1 | 4 | 19/1.19 | 5.95 | 0.76 | 7.51 | 0.13 | 7.81 | 8.7 | 135 | |
| THHN-3B | 3 | 7/2.20 | 6.60 | 1.02 | 8.68 | 0.15 | 9.02 | 10.0 | 292 | |
| THHN-3B1 | 3 | 19/1.33 | 6.65 | 1.02 | 8.73 | 0.15 | 9.07 | 10.0 | 291 | |
| THHN-2B | 2 | 7/2.47 | 7.41 | 1.02 | 9.49 | 0.15 | 9.83 | 11.0 | 361 | |
| THHN-2B1 | 2 | 19/1.50 | 7.50 | 1.02 | 9.58 | 0.15 | 9.92 | 11.0 | 361 | |
| THHN-1B | 1 | 19/1.68 | 8.40 | 1.02 | 10.48 | 0.18 | 10.88 | 12.1 | 457 | |
| THHN-1/0B | 1/0 | 19/1.89 | 9.45 | 1.27 | 12.03 | 0.18 | 12.43 | 13.8 | 585 | |
| THHN-2/0B | 2/0 | 19/2.12 | 10.60 | 1.27 | 13.18 | 0.18 | 13.58 | 15.1 | 724 | |
| THHN-3/0B | 3/0 | 19/2.38 | 11.90 | 1.27 | 14.48 | 0.18 | 14.88 | 16.5 | 900 | |
| THHN-4/0B | 4/0 | 19/2.67 | 13.35 | 1.27 | 15.93 | 0.18 | 16.33 | 18.1 | 1118 | |
| THHN-14A | Solid Conductor | 14 | 1/1.63 | 1.63 | 0.38 | 2.43 | 0.10 | 2.67 | 3.1 | 22 |
| THHN-12A | 12 | 1/2.05 | 2.05 | 0.38 | 2.85 | 0.10 | 3.09 | 3.5 | 36 | |
| THHN-10A | 10 | 1/2.59 | 2.59 | 0.51 | 3.65 | 0.10 | 3.89 | 4.4 | 57 | |
| THHN-8A | 8 | 1/3.26 | 3.26 | 0.76 | 4.82 | 0.13 | 5.12 | 5.7 | 94 | |
