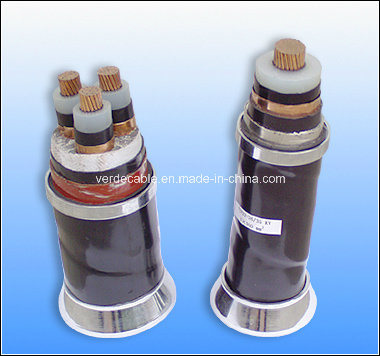

Cu conductor / XLPE Insulated /SWA or STA Armoured/ PVC sheathed Cable For Construction,Power station,Power plant,Industrial,Underground
Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V,6/10KV-,8.7/15KV,19/30KV,26/35KV
Standard: IEC60502 and IEC60331, BS 6346 , DIN VDE 0271
The product can be produced against the standard of IEC60502 and IEC60331, BS 6346, DIN VDE 0271, and can also customize as per customer's request.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70
2. The max temperature of the conductor of cable should less than 160 when short circuit. (less than 5 second)
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6 Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V
7 Number of cores: One, two, three, four, five
8 Type, name and usage
| Type | Description | Application Occasion | |
| Cu | Al | ||
| YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
| YJY | YJLY | XLPE insulation PE sheath power cable | |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
| YJV62 | YJLV62 | XLPE insulation, Non-magnetism steel tape armor, PE sheath power cable | |
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint |
| YJV72 | YJLV72 | XLPE insulation, Non-magnetism steel-wire armor, PVC sheath power cable | |
| YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
| Hint specially | The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. | ||
